• An illustration of a brake assembly for a Leclerc Floor Loom, featuring components such as flat metal brake circles, a brake lever, brake springs, connecting rods, turnbuckles, strengthening pieces (including the Leclerc Strengthening Piece for Floor Looms by Leclerc Looms), a brake drum, long and short pawls for the cloth beam, a ratchet wheel, and a take-up motion handle.
  • Diagram of a brake system showing flat metal brake circle, brake lever #2, turnbuckle, Leclerc Strengthening Piece for Floor Looms from Leclerc Looms, brake spring, and connecting rod #2. Labels indicate specific parts and their positions within the mechanism. Essential for repairs if components are lost or damaged.
  • Diagram of a brake mechanism for a Leclerc Floor Loom. It shows the brake lever connected to a flat metal brake circle via turnbuckles, brake springs, and Leclerc Strengthening Pieces for Floor Looms by Leclerc Looms. It also includes details of the ratchet wheel, take-up motion handle, and long & short pawls for the cloth beam.
  • A detailed diagram of a brake system for a Leclerc Floor Loom beam, featuring labeled parts such as the brake lever, turnbuckle, flat metal brake circle and rod, connecting rod, brake springs, Leclerc Strengthening Piece to prevent lost or damaged components, brake drum, ratchet wheel, take-up motion handle, and long & short pawls from Leclerc Looms.
1 3

Leclerc

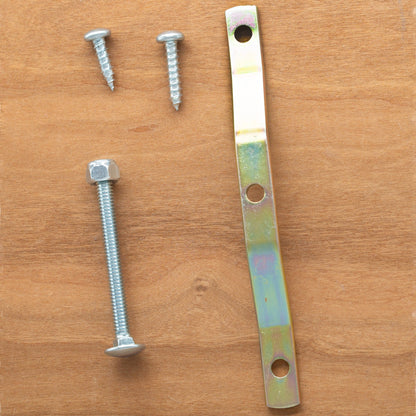

Leclerc Strengthening Piece for Floor Looms

Leclerc Strengthening Piece for Floor Looms

$14.00
$14.00
Select Type

Description

Replace the lost or damaged Strengthening Piece for your Leclerc Floor Loom.

(see diagram to determine your configuration, or contact us for assistance)

Special Order Item Details

This item is final sale and ineligible for returns or exchanges. Please confirm that this is the correct part or item prior to ordering. We’re glad to help with your selection - please contact us!

Item number: #61800209
